Introduction

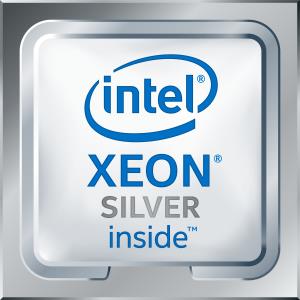

Lenovo Intel Xeon Silver 4114 processor 2.2 GHz 13.75 MB L3

Specifications

Processor family	Intel® Xeon®
Processor frequency	2.2 GHz
Processor cores	10
Processor socket	LGA 3647
Component for	Server/workstation
Processor lithography	14 nm
Processor model	4114
Processor threads	20
Processor operating modes	64-bit
Processor cache	13.75 MB
Processor cache type	L3
Processor boost frequency	3 GHz
Processor codename	Skylake
Memory channels supported by processor	Hexa
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
ECC supported by processor	Yes
On-board graphics adapter	No
Thermal Design Power (TDP)	85 W
Maximum number of PCI Express lanes	48
PCI Express slots version	3.0
Scalability	2S
Embedded options available	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Intel® vProT Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Trusted Execution Technology	Yes
Intel® Speed Shift Technology	Yes
Intel TSX-NI	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Conflict Free processor	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel® OptaneT Memory Ready	No
Tcase	78 °C
Processor package size	76 x 56.5 mm
Compatibility	Lenovo ThinkSystem SR550
