Specifications

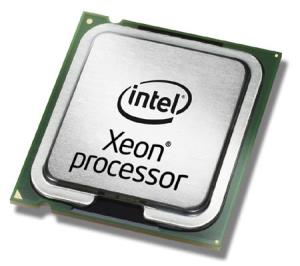

Processor family	Intel Xeon
Processor clock speed	2.4 GHz
Processor cores	4
Processor socket	Socket 1356
Component for	Server/Workstation
Processor process	22 nm
Processor model	E5-2407V2
Processor threads	4
System bus rate	6.4 GT/s
Processor operating modes	32-bit, 64-bit
L3 cache	10 MB
Stepping	S1
Turbo frequency (max)	2.4 GHz
Bus type	QPI
Number of QPI links	1
Maximum RAM supported	384 GB
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	800, 1066, 1333 MHz
Memory bandwidth (max)	32 GB/s
Memory channels support	Triple
ECC	Yes
On-board graphics adapter	No
Thermal power	80W
VID Voltage Range	0.65 - 1.3V
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
PCI Express slots quantity	24
PCI Express slots version	3.0
Supported instruction sets	AVX
Scalability	2S
Physical Address Extension (PAE)	Yes
Embedded options available	No
Intel Hyper-Threading Technology	No
Intel Identity Protection Technology	No
Intel Turbo Boost Technology	No
Intel Flex Memory Access	No
Intel AES New Instructions	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel Virtualization Technology	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Intel Secure Key	Yes
Intel TSX-NI	No
Tcase	76 °C
CPU configuration (max)	2
